Ag2130

Ag2130

Ag2130 is a low cost single channel PSTN Interface in a SIL package. The module provides many integrated features, including a basic barrier on-chip. It can be used in systems without a ground, or in applications where common mode interference is very high. Ag2130 can also be operated from either +3.3V or a +5V supply.

Key Features & Documents

Highly featured PSTN interface

Very small SIL package options

Includes Transformer isolation

On board Loop switch and Diode bridge

Ringing detection

Parallel phone detect

Programmable to meet different country standards

3.3V or 5V input

Simple intergration


Ag2130

Part Number

Description

Package

Samples

Volume Pricing

Ag2130S

Single channel programmable trunk/PSTN interface

SIL



Evaluation Boards

Evaluation Board Ag2130

This evaluation board is suitable for and fully compatible with the Ag2130. It can be used on its own or it can be connected to an Ag117x evaluation board.

NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.


Ag1110

Ag1110

Ag1110 is a low cost, long loop SLIC, in a space-saving single-in-line (SIL) package, requiring very few external components. Suitable for use in high line count applications such as Central Office, PBX, Digital Loop Carrier and Pair Gain Systems.

Key Features & Documents

Very simple integration

Constant current feed to the line, with

constant voltage fold over

Single +5V system side power supply

600R impedance

Works with a battery of up to –72V

Short circuit protection

On hook transmission


Ag1110

Part Number

Description

Package

Samples

Ag1110

5V – 600R

SIL

For volume quotes for any of these models, contact your local distributor, details can be found here (below):

Volume Pricing


Ag1170

Ag1170

The world’s first +3.3V only ringing SLIC. Also available as a +5V version, Ag1170 has a built in DC-DC converter to generate all of the tricky telecom and ringing voltages on board – all from a single +3.3V (or +5V) supply. Ag1170 is available in SIL or DIL formats, ideal for VoiP applications.

Key Features & Documents

600R and Programmable impedance options

Very small SIL and DIL package options

Very Simple integration

On-board ringing generator

Integral high efficiency DC/DC converter, providing:

Ringing voltage and Loop current

Single supply voltage (3.3v or 5v option)

Tip/Ring polarity reversal

Simplified protection


Ag1170

Part Number

Description

Package

Samples

Volume Pricing

Ag1170-S3

3V – 600R

SIL

Ag1170-S5

5V – 600R

SIL

Ag1170P-S5

5V – Programmable

SIL

* Ag1170-D5 *

5V – 600R

SIL

* These Ag1170 modules ( D5) are on a 1,000 piece MOQ.



Evaluation Boards

Evaluation Board Ag117x

This evaluation board Ag117X is suitable for use with all variants of the Ag1170 and Ag1171. It can be used on its own or it can be connected to another Ag117x evaluation board or to an Ag2120 evaluation board.

NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.


Ag1171

Ag1171

Ag1171 is a low cost single channel SLIC with a fully integrated DC-DC converter to generate all necessary battery and ringing voltages. The module only requires a single supply from +3.3V to +5V. Ag1171 is suitable for low line count, short loop applications, such as Wireless Local Loop Terminals (WLL), Fixed Cellular Terminals (FCT), Fixed Wireless Terminals (FWT) and Internet Telephony (VoIP).

Key Features & Documents

Low Cost

Very Simple integration

Small size - SIL package

600R impedance

On-board ringing generator

Integral high efficiency DC/DC converter, providing:

Ringing voltage and Loop current

+5V to +3.3V supply voltage

Tip/Ring polarity reversal

Simplified protection


Ag1171

Part Number

Description

Package

Samples

Ag1171

Single channel ringing SLIC, +3.3V to +5V supply

SIL

For volume quotes for any of these models, contact your local distributor, details can be found here (below):

Volume Pricing


Evaluation Boards

BoardAg117x

This evaluation board is suitable for use with all variants of the Ag1170 and Ag1171. It can be used on its own or it can be connected to another Ag117x evaluation board or to an Ag2120 evaluation board.

NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.


Ag6800

Ag6800

The Ag6800 is a single channel high power PSE module designed to be compliant with the IEEE802.3bt Power over Ethernet (PoE) applications. It is capable of delivering up to 97W and is aimed at higher power applications. It is complemented by the Ag5800 PD module for POE and and PoH applications.

Key Features & Documents

Cost Optimised 97W POE PSE

IEEE802.3bt compliant module

Power out on all 4 pairs

57V out for maximum efficiency

Compact DIL package – 51mm(L) x 35mm(W) x 7mm (H)

Very high efficiency (99%)

Overload and short-circuit protection

IEEE802.3af & 802.3at backward compatible

Industrial Temperature

Minimal external components

Simple integration


Ag6800

Part Number

Output Voltage

Output Power

Samples

Ag6800

56V

97 Watts

For volume quotes for any of these models, contact your local distributor, details can be found here (below):

Volume Pricing


Evaluation Boards

Ag6800 Evaluation Board

The EvalAg6800 is intended for testing and evaluation of the performance of the Ag6800 IEEE802.3bt 4-Pair high power POE PSE module. This evaluation board will work with suitable 99W PoE / PoH Powered Devices (PD) that are capable of extracting power over the spare pair and  the data pair, such as the Ag5800 high power PoE PD module. The Ag6800 can be set to Legacy mode to alow compatability to older High Power PoE Ultra, PoH and UPoE such as the Ag5500 Ag5600 and Ag5610.  Please use the links provided to buy boards or download the user  manual.

NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.


Ag6110

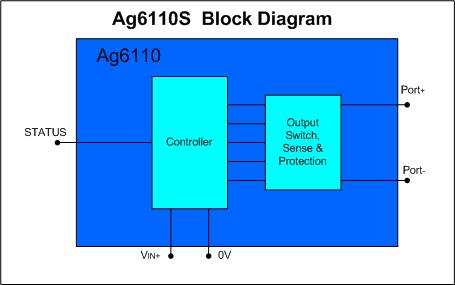

Ag6110

• Not Recommended for New Designs

The Ag6110 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300). Ag6110 is compatible with POE Ultra devices and modules (e.g. Ag5500). Ag6100S will operate as standard across the Industrial Temperature range (-40C to +85C). Ag6100 requires a 48 – 57V DC input, frequently provided by the Ag7100 DC-DC converter module.

Key Features & Documents

• Not Recommended for New Designs

Low cost, high power PSE injector module

IEEE802.3af & at compatible

Small Footprint - SIL - 53mm(L)x 7mm(W)x 14mm(H)

Signature & Class recognition

Over Current & Short Circuit Protection

Very Low Power Dissipation

Supplies power across all 4 pairs

Simple integration


Ag6110

Part Number

Output Voltage

Output Power

Samples

Volume Pricing

Ag6110

48V / 57V

74 Watts

Not Recommended for New Designs



Evaluation Boards

Ag6110 Evaluation Board

Not Recommended for New Designs
This is Silvertels standard IEEE802.3af, IEEE802.3at and POE Ultra PSE module evaluation board, for testing and evaluation of Silvertel Single Channel PSE modules. It is designed to work with Powered Devices (PDs) that extract power from either the spare pair and or the data pair. It is suitable for use at 10/100/1000 and 10G Ethernet (HDBaseT compatible) rates, with the following products – Ag6100-S and Ag6110. Please use the links provided to order boards or download the User Manual.

User Manual

Ag6100

Ag6100

The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300). Ag6110 is compatible with POE Ultra devices and modules (e.g. Ag5500). Ag6100S will operate as standard across the Industrial Temperature range (-40C to +85C). Ag6100 requires a 48 – 57V DC input, frequently provided by the Ag7100 DC-DC converter module.

Key Features & Documents

4 Channel

IEEE802.3af & at compatible

Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)

Over Current & Short Circuit Protection

Signature & Class recognition

39W per channel

Hardware and Software modes

Industrial Temperature

Simple integration


Ag6100

Part Number

Output Voltage

Output Power

Samples

Volume Pricing

Ag6100-S

48V / 57V

39 Watts

Ag6110

56V / 57V

74 Watts



Evaluation Boards

Ag6100 and Ag6110 Evaluation Boards

This is Silvertels standard IEEE802.3af, IEEE802.3at and POE Ultra PSE module evaluation board, for testing and evaluation of Silvertel Single Channel PSE modules. It is suitable for use at 10M/100M/1G and 10G Ethernet (HDBaseT compatible) rates, with the following products – Ag6100S and Ag6110. It is designed to work with Powered Devices (PDs) (e.g. Ag9700 or Ag5200) that extract power from either the spare pair and or the data pair. Please use the link provided to order and request specific evaluation boards or download the User Manual.


Ag6400

Ag6400

The Ag6400 is a 4 channel Power Sourcing Equipment (PSE) module designed to inject up to 39W of power from each of up to four output ports into conventional twisted pair Category 5 Ethernet cable. These modules provide exceptional efficiency while maintaining compatibility with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices.

Key Features & Documents

4 Channel

IEEE802.3af & at compatible

Small SIL Footprint- SIL - 50mm(L)x8mm(W)x14mm(H)

Over Current & Short Circuit Protection

Signature & Class recognition

30W per channel

Hardware and Software modes

Industrial Temperature

Simple integration


Ag6400

Part Number

Output Voltage

Output Power

Samples

Volume Pricing

Ag6400-S

48V / 56V

4 x 30 Watts



Evaluation Boards

Ag6400 Evaluation Board

This is Silvertels standard IEEE802.3af and IEEE802.3at PSE module evaluation board, for testing and evaluation of Silvertels Four Channel PSE module Ag6400. It is designed to work with Powered Devices (PDs) that extract power from either the spare pair and/or the data pair. It is suitable for use with the following product – Ag6400. Please use the links provided to order boards or download the User Manual.


Ag6100

Ag6100

The Ag6100 is a single channel, small package SIL PSE module, designed to inject power into conventional twisted pair Category 5 Ethernet cables. Ag6100S modules are compatible with IEEE 802.3af POE and 802.3at PoE+ devices and PD modules (e.g. Ag9800 or Ag5300). Ag6110 is compatible with POE Ultra devices and modules (e.g. Ag5500). Ag6100S will operate as standard across the Industrial Temperature range (-40C to +85C). Ag6100 requires a 48 – 57V DC input, frequently provided by the Ag7100 DC-DC converter module.

Key Features & Documents

IEEE802.3af & at compatible

Small SIL Footprint-53mm(L)x 7mm(W)x 14mm(H)

Over Current & Short Circuit Protection

Signature & Class recognition

19W or 39W Output Supply

Very Low Power Dissipation (98% efficient)

Industrial Temperature

Simple integration


Ag6100

Part Number

Output Voltage

Output Power

Samples

Volume Pricing

Ag6100-S

48V / 57V

39 Watts



Evaluation Boards

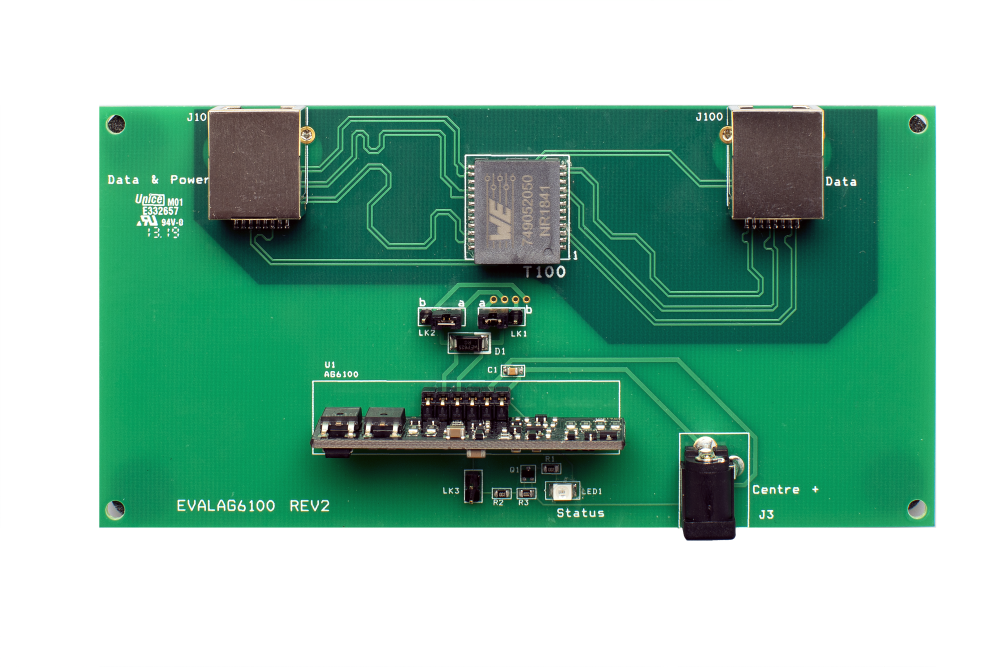

Ag6100 and Ag6110 Evaluation Boards

This is Silvertels standard IEEE802.3af, IEEE802.3at and POE Ultra PSE module evaluation board, for testing and evaluation of Silvertel Single Channel PSE modules. It is suitable for use at 10M/100M/1G and 10G Ethernet (HDBaseT compatible) rates, with the following products – Ag6100S and Ag6110. It is designed to work with Powered Devices (PDs) (e.g. Ag9700 or Ag5200) that extract power from either the spare pair and or the data pair. Please use the link provided to order and request specific evaluation boards or download the User Manual.

NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.


Ag6400

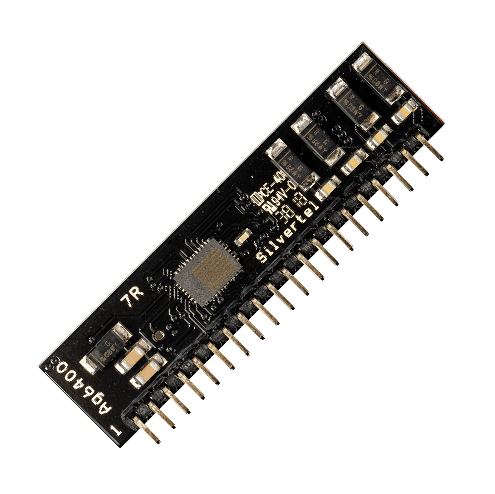

Ag6400

• Last Time Buy / Not Recommended for New Designs

The Ag6400 is a 4 channel Power Sourcing Equipment (PSE) module designed to inject up to 30W of power from each of up to four output ports into conventional twisted pair Category 5 Ethernet cable. These modules provide exceptional efficiency while maintaining compatibility with IEEE 802.3af and 802.3at Power-over-Ethernet (PoE) devices.

Key Features & Documents

• Last Time Buy / Not Recommended for New Designs

4 Channel

IEEE802.3af & at compatible

Small SIL Footprint- 50mm(L)x8mm(W)x14mm(H)

Over Current & Short Circuit Protection

Signature & Class recognition

19W or 30W per channel

Hardware and Software modes

Industrial Temperature

Simple integration


Ag6400

Part Number

Output Voltage

Output Power

Samples

Volume Pricing

Ag6400-S

48V / 56V

4 x 30 Watts

• Last Time Buy / Not Recommended for New Designs



Evaluation Boards

Ag6400 Evaluation Board

• Last Time Buy / Not Recommended for New Designs
This is Silvertels standard IEEE802.3af and IEEE802.3at PSE module evaluation board, for testing and evaluation of Silvertels Four Channel PSE module Ag6400. It is designed to work with Powered Devices (PDs) that extract power from either the spare pair and/or the data pair. It is suitable for use with the following product – Ag6400. Please use the links provided to order boards or download the User Manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
