Smallest PoE Solutions In The World
Silvertel provide the smallest Power over Ethernet solutions in the world. Our IEEE802.3af (13W), IEEE802.3at (30W) and IEEE802.3bt (85W) modules are significantly smaller than currently available discrete IC solutions.
Fast Track Your Enquiry
If you want more information, fill in this form. We will get back to you as soon as possible.
Featured Products

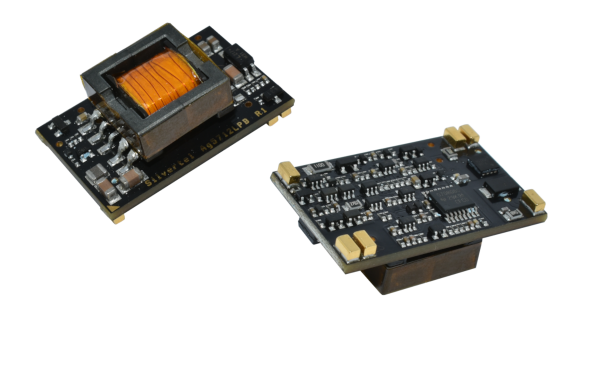

Miniature surface mount IEE802.3AT PoE 24W PD module
The Ag5700 series Power-over-Ethernet (PoE+) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full backwards compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.
The Ag5700 is pre-configured as a Type 2 Class 4 device, allowing the module to draw up to 30W of power from the PSE, with nominal output voltages of 12V or 24V.
The high efficiency DC/DC converter can achieve up to 89% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier.
Low Profile, High Power, Non-Isolated, DC-DC Converter
The Ag7010 module is a high power Buck Converter Module optimised to work with USB-C (PD) voltages (9V/15V or 20V). It is a non-isolated product with a single, low noise, low ripple output capable of delivering 120W @ 10A. Conversion efficiency is typically 95% providing an energy efficient means of deriving the desired output voltage.
The module is ideal for applications including Monitors/TV’s, Bluetooth Speakers, Gaming Consoles, 2D & 3D Scanners and Printers, Routers, Network Switches and Modems. Other applications include as an end-point converter for distributed 12/24V for cameras, monitoring systems and industrial applications. The Ag7010 incorporates over-current/short circuit and thermal protection. Access to an on-board PMbus (I2C) interface allows intelligent control and monitoring of the supply. An Under Voltage Lock Out feature ensures that the module does not incur damage from ‘out of range’ input voltages. The Ag7010 is supplied in an extremely compact, lead-less packaging format, designed to be surface-mounted thereby enabling efficient heat transfer. The Ag7010 is a flexible, simple to use DC/DC Buck Converter solution providing an efficient means of deriving a stable, high power, low noise supply to your product. Coupled with intelligent control and monitoring the Ag7010 provides cost-effective, feature-rich functionality.
