PoE (Power over Ethernet)

Silvertel has designed and developed the widest range of Power over Ethernet (PoE) modules, including the worlds smallest packages and the highest power modules available. We also have the highest efficiency PoE module in the world. We manufacture different packages, output power and voltage options to suit a huge variety of applications. Our PoE modules require minimal external components and all have built-in signature recognition complying to the IEEE standards. For flexibility many of our module ranges offer different output voltage options and include thermal protection, whilst all have output voltage offset adjustment, with overload and short circuit protection included. Silvertel PoE modules provide a cost effective, easy to use solution for applications such as Voice over Internet Protocol phones (VoIP phones), webcams, wireless access points, security cameras, security equipment, door entry systems, IoT and smart solutions. Dependent on the module, we offer single in line (SIL), dual in line (DIL) and surface mount (SMT) options.

Click a product family from the chart below to view details and modules.

Click on PoE Selector Guide to download our PoE selector guide sheet for all the current recommended PoE range.

POE Selector Guide

Module Type

Select your desired module type to view our products

PD

Powered Devices

PSE

Power Sourcing Equipment


Power over Ethernet (PoE): PD up to 13W - IEEE802.3af

Ag9900 Series

The Smallest PoE PD Solution in the World

• Miniaturised PoE PD module:
SMT-21mm(L)x 14mm(W)x13.35mm(H)
• Low Profile 8mm high option
• Smallest in the world
• 40% smaller than any other PoE solution
• Overload & short-circuit protection
• Over-temperature protection option
• Industrial temperature option
• 3V, 5V, 12V & 24V versions
• Isolated DC/DC converter
• Low cost & simple integration

Ag9800 Series

• Small package size:
SMT-28mm(L)x17.8mm(W)x12mm(H)
• Overload and short-circuit protection
• Over-temperature protection option
• Wide input voltage range
• Power output-12W at 12V, 9W at 5V or 6W
at 3.3V
• Isolated DC/DC converter
• Low cost & simple integration

Ag9700 Series

• Cost optimised IEEE802.3af PoE
• SIL package:
SIL-56mm(L)x18mm(W)x14mm(H)
• Industrial temperature option (FL)
• Class programming option
• Overload & short-circuit protection
• Over-temperature protection option
• 3V, 5V, 12V & 24V versions
• Isolated DC/DC converter
• Low cost & simple integration

Ag9205

• High efficiency PD solution using
synchronous rectification
• Small SIL Package Size:
56mm(L) x 18mm(W) x 14mm(H)
• Highly efficient DC/DC converter (up to 88%
~ 5V 13W)
• Very low output ripple and noise
• Overload and short-circuit protection
• Industrial temperature range
• Over-temperature protection
• 1500V isolation (input to output)
• Simple integration


Power over Ethernet (PoE): PD up to 30W - IEEE802.3at

Ag5700LPB

• Smallest ‘at’ solution in the world
• Up to 30W peak output power (IEEE802.3at)
• Low cost, small low profile SMT package
• 89% efficient DC/DC converter
• 12V and 24V variants available
• Overload, short-circuit and thermal protection
• Low output ripple & noise
• Adjustable output voltage
• Industrial temperature range
• Minimal external components required
• Class 4 IEEE802.3 PD
• IEEE802.3bt, IEEE802.3at, IEEE802.3af compliant
• 1500Vdc isolation (input to output)

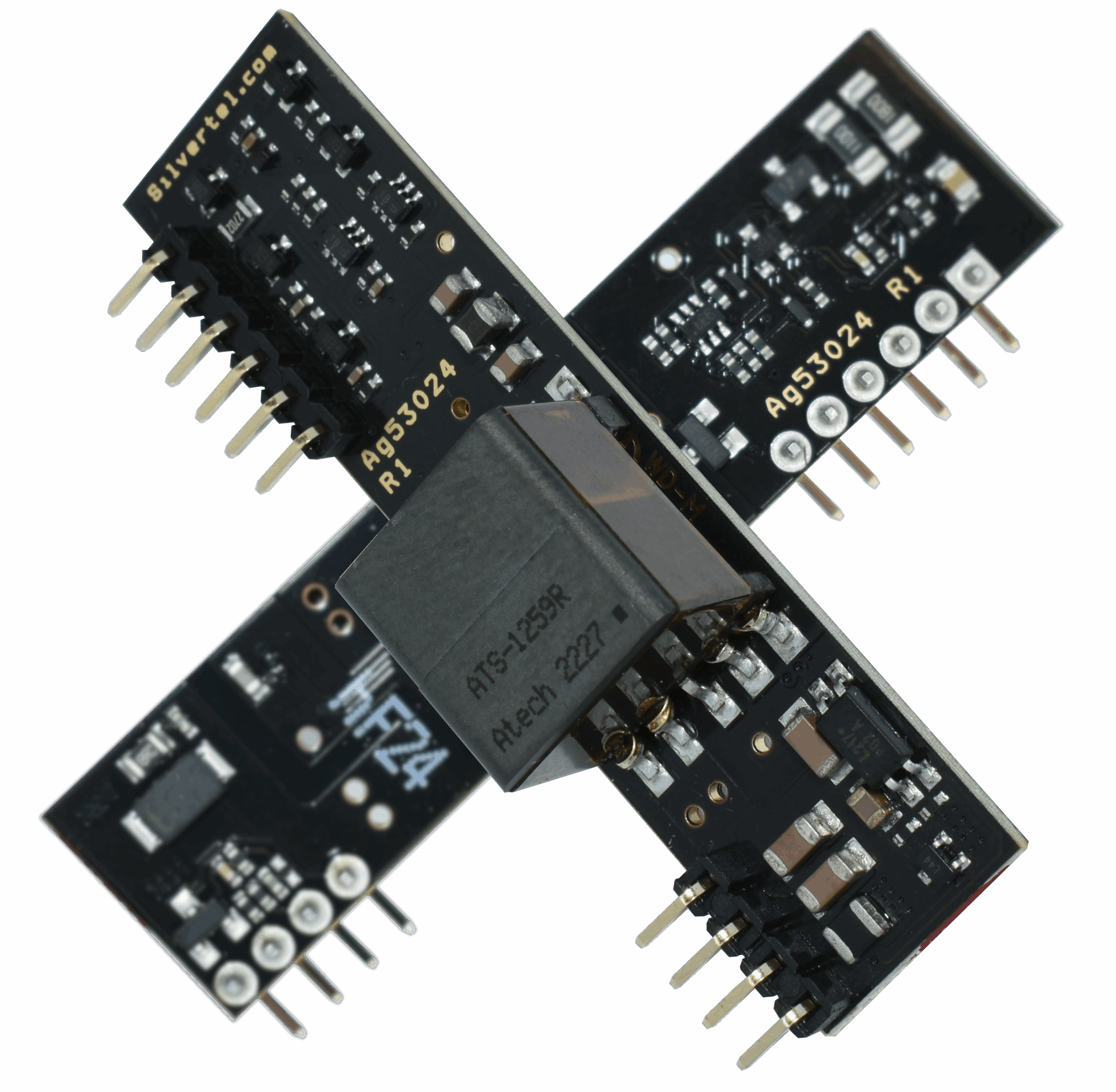

Ag5300

• SIL – 57mm(L)x18mm(W)x14mm(H)
• 12V & 24V output options
• Adjustable output voltage
• Input voltage range 37V to 57V
• Overload, thermal and short-circuit protection
• Isolated high efficiency DC/DC converter
• Minimal low cost external components required
• Low cost & simple integration

Ag5400

The Highest Efficiency PoE module in the world

• Very high efficiency (>93%)
• Environmentally friendly
• SIL – 57mm(L)x18mm(W)x14mm(H)
• Very low heat output
• Low output ripple & noise
• Overload, short-circuit and thermal protection
• Adjustable output voltage
• Very few external low cost components required
• Industrial temperature range
• Class 4 IEEE802.3 PD
• IEEE802.3bt, IEEE802.3at, IEEE802.3af compliant
• 1500Vdc isolation (input to output)

Ag5200

• PoE + module compliant with IEEE 802.3at & af
• DIL – 51mm(L)x30mm(W)x16mm(H)
• 12V output
• Adjustable output voltage
• Input voltage range 37V to 57V
• Overload, thermal and short-circuit protection
• Isolated high efficiency DC/DC converter
• Minimal low cost external components required
• Low cost & simple integration


PD up to 85W - IEEE802.3bt

Ag5800

• Smallest 85W ‘bt’ solution in the world
• DIL – 70mm(L) x 35mm(W) x 17mm(H)
• Power received on all 4 pairs – Type 4, Class 8
• Overload, thermal & short-circuit protection
• Very low power standby mode
• Wide input voltage range (37-57V)
• 12V or 24 V output
• 89% efficient isolated DC/DC converter
• Minimal low cost external components required
• Simple integration

Ag5810

• Smallest 60W ‘bt’ solution in the world
• DIL – 70mm(L) x 30mm(W) x 16mm(H)
• Power received on all 4 pairs – Type 4, Class 7
• Overload, thermal & short-circuit protection
• Very low power standby mode
• Wide input voltage range (37-57V)
• 12V or 24 V output
• 88% efficient isolated DC/DC converter
• Minimal low cost external components required
• Simple integration

Power over Ethernet (PoE): PSE up to 19W - IEEE802.3af

Ag6130

• Programmable output power limit up to 75W
• Compliant with IEEE802.3bt, IEEE802.3af and IEEE802.3at specifications.
• Single power rail feed
• Small SMT package size – 21mm x 14mm x 5mm
• Overload, short-circuit and thermal protection
• Minimal (low cost) external components required
• Supports reduced MPS power
• Industrial temperature range
• Simple integration

Ag6120

• IEEE802.3af, at & BT compatible
• Small SIL Footprint-
53mm(L)x 7mm(W)x 14mm(H)
• Over Current & Short Circuit Protection
• Signature & Class recognition
• Programmable 19W – 75W Output Supply limit
• IEEE802.3bt reduced MPS for lower power standby
• Very Low Power Dissipation (98% efficient)
• Industrial Temperature
• Simple integration

Ag6100

• IEEE802.3af & at compatible
• Small SIL Footprint-
53mm(L)x 7mm(W)x 14mm(H)
• Over Current & Short Circuit Protection
• Signature & Class recognition
• 19W or 39W Output Supply
• Very Low Power Dissipation (98% efficient)
• Industrial Temperature
• Simple integration


PSE up to 39W - IEEE802.3at

Ag6130

• Programmable output power limit up to 75W
• Compliant with IEEE802.3bt, IEEE802.3af and IEEE802.3at specifications.
• Single power rail feed
• Small SMT package size – 21mm x 14mm x 5mm
• Overload, short-circuit and thermal protection
• Minimal (low cost) external components required
• Supports reduced MPS power
• Industrial temperature range
• Simple integration

Ag6120

• IEEE802.3af, at & BT compatible
• Small SIL Footprint-
53mm(L)x 7mm(W)x 14mm(H)
• Over Current & Short Circuit Protection
• Signature & Class recognition
• Programmable 19W – 75W Output Supply limit
• IEEE802.3bt reduced MPS for lower power standby
• Very Low Power Dissipation (98% efficient)
• Industrial Temperature
• Simple integration

Ag6100

• IEEE802.3af & at compatible
• Small SIL Footprint-
53mm(L)x 7mm(W)x 14mm(H)
• Over Current & Short Circuit Protection
• Signature & Class recognition
• 19W or 39W Output Supply
• Very Low Power Dissipation (98% efficient)
• Industrial Temperature
• Simple integration


PoE Ultra 74W
Ag6130

• Programmable output power limit up to 75W
• Compliant with IEEE802.3bt, IEEE802.3af and IEEE802.3at specifications.
• Single power rail feed
• Small SMT package size – 21mm x 14mm x 5mm
• Overload, short-circuit and thermal protection
• Minimal (low cost) external components required
• Supports reduced MPS power
• Industrial temperature range
• Simple integration

Ag6120

• IEEE802.3af, at & BT compatible
• Small SIL Footprint-
53mm(L)x 7mm(W)x 14mm(H)
• Over Current & Short Circuit Protection
• Signature & Class recognition
• Programmable 19W – 75W Output Supply limit
• IEEE802.3bt reduced MPS for lower power standby
• Very Low Power Dissipation (98% efficient)
• Industrial Temperature
• Simple integration


PSE up to 99W - IEEE802.3bt

Ag6800

• Cost Optimised 97W PoE PSE
• IEEE802.3bt compliant module
• Power out on all 4 pairs
• 57V out for maximum efficiency
• Compact DIL package –
51mm(L) x 35mm(W) x 7mm (H)
• Very high efficiency (99%)
• Overload and short-circuit protection
• IEEE802.3af & 802.3at backward compatible
• Industrial Temperature
• Minimal external components
• Simple integration
