Ag59800-LPB
Ag59800-LPB series Power-over-Ethernet (PoE++) modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE802.3 PoE standard, with full compatibility with the IEEE802.3bt, IEEE802.3at and IEEE802.3af amendments.
The Ag59800-LPB is pre-configured as a Type 4 Class 8 device, requesting a minimum of 90W of power from the PSE, with nominal output voltages of 12V or 24V.

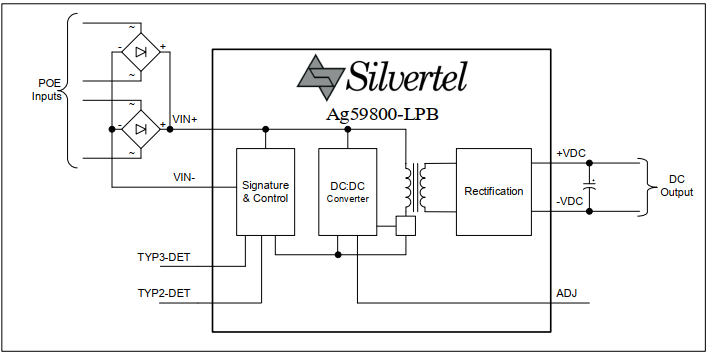

The high efficiency DC/DC converter can achieve up to 95% efficiency and operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier, as required by the IEEE802.3 specification.
Key Features & Documents
95% efficient 100W DC/DC converter
IEEE802.3bt class 8 PD (PoE++) for up to 89W output applications
12V and 24V variants available
Low output ripple & noise
Overload, short-circuit and thermal protection
Industrial temperature range
Minimal external components required
Compact Surface mount package size 51mm x 30mm x 15mm
Adjustable output voltage
IEEE802.3bt, IEEE802.3at, IEEE802.3af compliant
1500Vdc isolation (input to output)
Silvertel “design-in” assistance
Designed and manufactured in the UK
Ag59800-LPB
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing
Evaluation Boards
Ag59800-LPB Evaluation Board

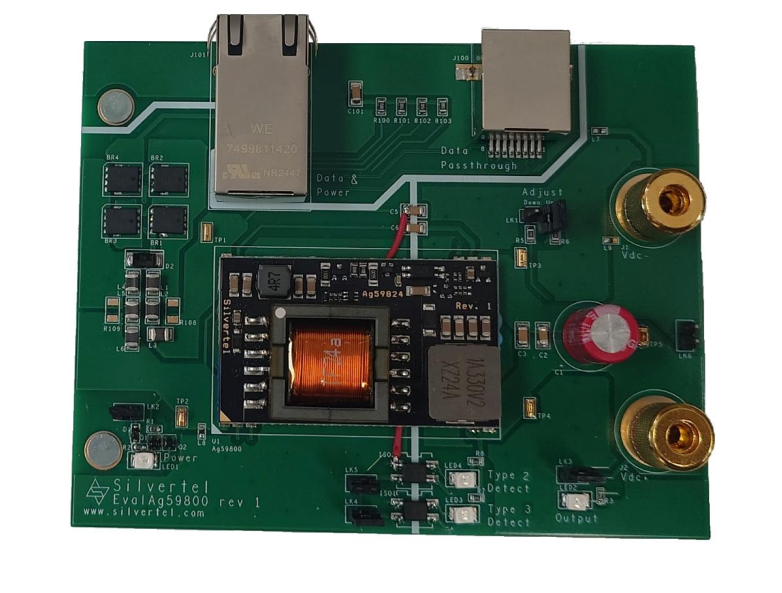

EvalAg59800-LPB are intended for testing and evaluation of the Ag59812-LPB and Ag59824-LPB SMT POE++ PD modules. Ag59812-LPB provides a regulated 12V DC output and the Ag59824-LPB provides a 24V DC output. The evaluation boards will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. They can also be used in conjunction with Ag6800 or Ag6810 as compatible PSEs. Please use the links provided to order boards or download the user manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module.
