Ag5810

Ag5810

Key Features & Documents
Smallest 60W ‘bt’ solution in the world
DIL - 70mm(L) x 30mm(W) x 16mm(H)
Power received on all 4 pairs - Type 4, Class 7
Overload, thermal & short-circuit protection
Very low power standby mode
Wide input voltage range (37-57V)
12V or 24 V output
88% efficient isolated DC/DC converter
Minimal low cost external components required
Ag5810
Part Number
Output Voltage
Output Power
Samples
Volume Pricing

Evaluation Boards
Ag5810 Evaluation Boards
The EvalAg5810 is intended for testing and evaluation of the performance of the Ag5810 IEEE802.3bt 4-Pair high power POE PD module. This evaluation board will work with suitable IEEE802.3bt Power Sourcing equipment (PSE) that are capable of providing power over the spare pair and the data pair, such as the Ag6800 high power PoE PD module. Please use the links provided to buy boards or download the user manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Ag5800

Ag5800
The Ag5800 is IEEE802.3bt compliant PD module is designed for high power POE applications. Depending on cable length it can output up to 85W when supplied from an IEEE802.3bt PSE. This total solution includes 1.5kV of isolation, PoE signature and an integral DC to DC converter for 12 or 24V output.

Key Features & Documents
Smallest 85W ‘bt’ solution in the world
DIL - 70mm(L) x 35mm(W) x 17mm(H)
Power received on all 4 pairs - Type 4, Class 8
Overload, thermal & short-circuit protection
Very low power standby mode
Wide input voltage range (37-57V)
12V or 24 V output
89% efficient isolated DC/DC converter
Minimal low cost external components required
Simple integration
Ag5800
Part Number
Output Voltage
Output Power
Samples
Volume Pricing

Evaluation Boards
Ag5800 Evaluation Boards
The EvalAg5800 is intended for testing and evaluation of the performance of the Ag5800 IEEE802.3bt 4-Pair high power POE PD module. This evaluation board will work with suitable IEEE802.3bt draft PoE / PoH Power Sourcing equipment (PSE) that are capable of providing power over the spare pair and the data pair, such as the Ag6800 high power PoE PD module. Please use the links provided to buy boards or download the user manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Ag5200

Ag5200
The Ag5200 is a low cost PoE+ module that can deliver up to 30 Watts of output power. It has a small DIL format package size that is ideal for applications such as IP Telephones, WiMAX access points, PTZ cameras and remote computer terminals. The input Signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at.

Key Features & Documents
POE + module compliant with IEEE 802.3at & af
DIL - 51mm(L)x30mm(W)x16mm(H)
12V output
Adjustable output voltage
Input voltage range 37V to 57V
Overload, thermal and short-circuit protection
Isolated high efficiency DC/DC converter
Minimal low cost external components required
Low cost & simple integration
Ag5200
Part Number
Output Voltage
Output Power
Samples
Volume Pricing

Evaluation Boards
Ag5200 Evaluation Board
Ag5300

Ag5300
The Ag5300 series are low cost PoE+ modules, in a Single-In-Line (SIL) package, that can deliver up to 30 Watts of output power. Options for 12V DC (Ag5300) or 24V DC output (Ag5324) are available. The module signature complies with both the IEEE802.3af and IEEE802.3at specifications and it is designed to meet the safety isolation requirements of IEEE802.3at. The exceptionally small footprint and package size, make it ideal for space restricted applications such as IP Video Telephones, WiMAX access points, PTZ cameras and remote computer terminals. Ag5324 is well suited to building automation and industrial control applications requiring 24V with the ability of Ag5324 to operate over the industrial temperature range from -40 to +85C further extending its’ versatility.

Key Features & Documents
SIL - 57mm(L)x18mm(W)x14mm(H)
12V & 24V output options
Adjustable output voltage
Input voltage range 37V to 57V
Overload, thermal and short-circuit protection
Isolated high efficiency DC/DC converter
Minimal low cost external components required
Low cost & simple integration
Ag5300
Part Number
Output Voltage
Output Power
Samples
Volume Pricing

Evaluation Boards
EvalAgSil Evaluation Boards

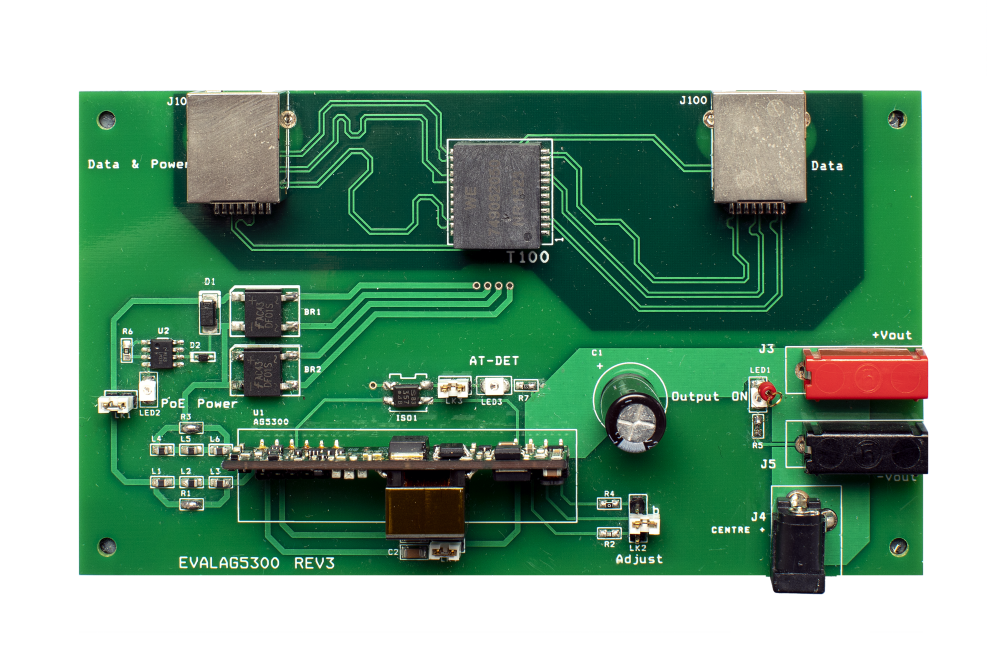

EvalAgSIL is designed for testing and evaluation of the Ag5300 range of PoE PD modules. It provides a regulated DC output with voltage dependent on which version of Ag5300 is fitted. The evaluation board will work with Power Sourcing Equipment (PSE) that supplies power over the spare pair or data pairs. it can also be used in conjunction with Ag6120, Ag6100 or Ag6400 as compatible PSEs. Please use the links provided to order boards or download the user manual.
NOTE : when ordering this evaluation board online from the links bellow the module is not included please ensure a separate module is also ordered. From Silvertel and over distribution partners evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Buy Evaluation Board
Ag9312

Ag9312
• Last Time Buy / Not Recommended for New Designs
The Ag9312 and Ag9330 modules are ideal for Security Applications such as cameras where standard AC and DC supplies are used as a backup or as an installation option. The Ag9312 Power-over-Ethernet(PoE) PD module is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af PoE standard. The Ag9330 PoE module conforms to the IEEE 802.3at 30W standard. In addition to the POE input the Ag9300 family of modules also provides an auxiliary input that will accept a DC voltage between 12V and 48V or a comparable AC voltage (after external rectification).

Key Features & Documents
• Last Time Buy / Not Recommended for New Designs
3 Input PSU Module - PoE, 12V dc & 24V ac
Single Isolated DC/DC providing low cost and small size
Auxiliary input voltage - 12V to 48V
Small DIL package size: 51mm(L) x 30mm(W) x16mm(H)
Overload and short-circuit protection
Over-temperature protection
High efficiency DC/DC converter
Simple integration
Ag9312

Evaluation Boards
Ag9312 Evaluation Board
Ag9205

Ag9205
he Ag9205 is a PoE module designed for higher efficiency than standard Silvertel products. The module extracts power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard. This is a total solution, including a 1.5kV isolation barrier between the input and output. The Ag9205S has been specifically designed to give more power at 5V output voltage than standard Ag9705 series parts.

Key Features & Documents
IEEE802.3af compliant
Small Package Size – 56mm(L) x 18mm(W) x 14mm(H) Highly efficient DC/DC converter (up to 88% ~ 5V 13W)
Low output ripple and noise
Wide Input voltage range
Overload and short-circuit protection
Adjustable Output
1500V isolation (input to output)
Simple integration
Ag9205
Part Number
Output Voltage
Output Power
Samples
Volume Pricing
Documents

Evaluation Boards
Ag9XXX SIL Evaluation Board
This is Silvertels standard low power IEEE802.3af PD module evaluation board, for testing and evaluation of Silvertel PD POE modules. It is designed to work with Power Sourcing Equipment (PSE) that supplies power over either the spare pair or the data pair. Ag6100 and Ag6400 are compatible PSE modules. It is suitable for use with the following products – Ag92xx, Ag9120, Ag90xx, Ag94xx, Ag96xx and Ag97xx. Please use the links provided to order boards or download the User Manual.
NOTE : When ordering this evaluation board online from the links bellow the module is not included please ensure a separate module is also ordered. From Silvertel and over distribution partners evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Ag9330

Ag9330
• Last Time Buy / Not Recommended for New Designs
The Ag9312 and Ag9330 modules are ideal for Security Applications such as cameras where standard AC and DC supplies are used as a backup or as an installation option. The Ag9312 Power-over-Ethernet(PoE) PD module is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af PoE standard. The Ag9330 PoE module conforms to the IEEE 802.3at 30W standard. In addition to the POE input the Ag9300 family of modules also provides an auxiliary input that will accept a DC voltage between 12V and 48V or a comparable AC voltage (after external rectification).

Key Features & Documents
• Last Time Buy / Not Recommended for New Designs
3 Input PSU Module for Security -
PoE, 12V dc & 24V ac
Single Isolated DC/DC providing low cost and small size
IEEE802.3af & 802.3at compliant
Small DIL package size – 60mm(L) x 30mm(W) x16mm(H)
Overload, thermal and short-circuit protection
Adjustable Output
1500Vdc isolation (input to output)
Simple integration
Ag9330

Evaluation Boards
Ag9330 Evaluation Board
• Last Time Buy / Not Recommended for New Designs
This is an evaluation board, for testing and evaluation of Silvertels Ag9330 3-input IEEE802.3at POE+ PD module. It comes supplied with one Ag9330 module fitted. It is designed to work with Power Sourcing Equipment (PSE) that supplies power over either the spare pair or the data pair. It is suitable for use only with the following product – Ag9330. Please use the links provided to order boards or download the User Manual.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Ag9700

Ag9700
The Ag9700 series of PoE modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard. The Ag9700 is a complete cost reduced solution, with an optimised DC-DC converter making it both reliable and competitive with POE IC based alternatives for medium to high volume applications. The module is very easy to use, requiring minimal external components and provides isolation between the input and output compliant with IEEE802.3af. The Ag9700 series is available in 12V, 5V, 3V and 24V options to suit a wide range of applications. An industrial temperature POE module (FL) is also available for operation between -40°DegC to +85°DegC. The modules in the Ag9700 series are the recommended replacements for the Ag9000, Ag9400 and Ag9600 series. Please contact Silvertel for more details.


Key Features & Documents
Cost optimised IEEE802.3af POE Module
Small Package (SIL)
Industrial temperature option
Overload and short-circuit protection
1500V isolation (input to output)
Simple integration
Ag9700
Part Number
Output Voltage
Output Power
Samples
Volume Pricing

Evaluation Boards
Ag9XXX SIL Evaluation Board
This is Silvertels standard low power IEEE802.3af PD module evaluation board, for testing and evaluation of Silvertel PD POE modules. It is designed to work with Power Sourcing Equipment (PSE) that supplies power over either the spare pair or the data pair. Ag6100 and Ag6400 are compatible PSE modules. It is suitable for use with the following products – Ag90xx, Ag9120, Ag92xx, Ag94xx, Ag96xx and Ag97xx. Please use the links provided to order boards or download the User Manual.
NOTE : when ordering this evaluation board online from the links bellow the module is not included please ensure a separate module is also ordered. From Silvertel and over distribution partners evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Ag9800

Ag9800
Ag9800 is a miniature low profile PoE module. It is designed such that adding just two diode bridges and an electrolytic capacitor to this tiny module is enough to enable PoE functionality in a product. Ag9800 is fully compliant to the IEEE 802.3af PoE standard. It provides a POE signature, classification, isolation and DC to DC conversion to 12V, 5V or 3.3V while taking up minimal PCB space. It is ideal for space constrained PoE applications such as IP phones, wall mount appliances, IP cameras, thermostats, smoke detectors and room sensors, and is perfect for a whole range of new IoT devices.

Key Features & Documents
Very small package size and profile
Overload and short-circuit protection
Integral DC/DC converter
Cost optimised IEEE802.3af POE
1500V DC impulse test isolation (input to output)
Integrated Thermal Protection option
Ag9800M - Standard Product
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing
Ag9800MT - With Thermal Protection
(Industrial Temperature Version - with Thermal Protection)
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing

Evaluation Boards
Ag9800 Evaluation Board
These are a range of evaluation boards for testing and evaluation of Silvertels miniature IEEE802.3af Ag9800M SMT package POE PD modules. It is designed to work with Power Sourcing Equipment (PSE) that supplies power over either the spare pair or the data pair. It is compatible with the Ag6100 and Ag6400 PSE modules. It can be ordered as one of six options, dependent on the module/output voltage variant fitted, from either Ag9812M, Ag9805M or Ag9803M or the version with over temperature protection fitted, with the MT suffix. Please click on the order codes above, or use the Buy Samples button provided to order boards. The User Manual can also be downloaded below.
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
Ag9900


Ag9900
Ag9900 is now the smallest PoE module in the world, superseding the Ag9800. The five versions offered:-
New Preferred
MTB – standard IEEE802.3af compliant, Industrial temperature, surface mount module.
LPB – same PoE standard with Low profile (less than 8mm high).
Extended range
M – standard IEEE802.3af compliant surface mount module.
MT – standard + Industrial temperature surface mount module.
LP – same PoE standard with Low profile (less than 8mm high).
It is designed such that adding just two diode bridges and an electrolytic capacitor to this truly tiny module is enough to enable PoE functionality in a product. Ag9900 is fully compliant to the IEEE 802.3af PoE standard. It provides a PoE signature, classification, isolation and DC to DC conversion options for 3.3V, 5V, 12V or 24V, while taking up minimal PCB space. It is ideal for space constrained PoE applications such as IP phones, wall mount appliances, IP cameras, thermostats, smoke detectors and room sensors, and is perfect for a whole range of new IoT and building automation sensors and devices.
Key Features & Documents
Smallest In The World
Miniaturised Poe Pd Module: As Small as - 21mm(L)X 14mm(W)X8mm(H)
40% Smaller Than Any Other Poe Solution
Overload & Short-circuit Protection
Over-temperature Protection Option
Industrial Temperature Option
3v, 5v, 12v & 24v Versions
Isolated Dc/dc Converter
Low Cost & Simple Integration
NEW! - MTB and LPB variants available in tape and reel.
Ag9900MTB
(Surface mount - Industrial Temperature Version - with Thermal Protection)
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing
Note – all Ag99xxMPB variants available in tape and reel with order code suffix -15TR
Ag9900LPB
(Low Profile - Surface mount - Industrial Temperature Version - with Thermal Protection)
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing
Note – all Ag99xxLPB variants available in tape and reel with order code suffix -15TR
Ag9900M
(Gull-Wing Surface mount)
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing
Ag9900MT
(Gull-Wing Surface mount - Industrial Temperature Version - with Thermal Protection)
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing
Ag9900LP
(Low Profile - Through-hole - Includes industrial temperature and thermal protection)
Part Number
Output Voltage
Output Power
Buy Samples
Volume Pricing

Evaluation Boards
Ag9900 Evaluation Board
NOTE : Evaluation Boards are supplied pre-loaded with a sample module. Please ensure that you specify which variant you wish populated into the Eval board on request or ideally on your PO.
