Ag321T - Qi 15W Transmitter Module

The Ag321T is a 12V DC input wireless power transmitter module; designed to work with the matched Ag320R  and Qi compatible 15W wireless power receivers. Typically used in higher power wireless charging applications.

Key Features & Documents

Complementry Module Pair Ag321T (Transmit Power) & Ag320R (Receive Power)

Up to 15 Watts Wireless Power

Low profile DIL package modules

12V Input

Automatic Compatible Receiver Verification

Low bit rate (4 bytes/s) user Accessable data transfer to Ag321T

Overload & Short-circuit Protection

Low Standby Power Consumption


Ag321T -  Qi 15W Transmitter Module

Part Number

Input Voltage

Output Power

Samples

Volume Pricing

Ag321T

12V

15 Watts



Evaluation Boards

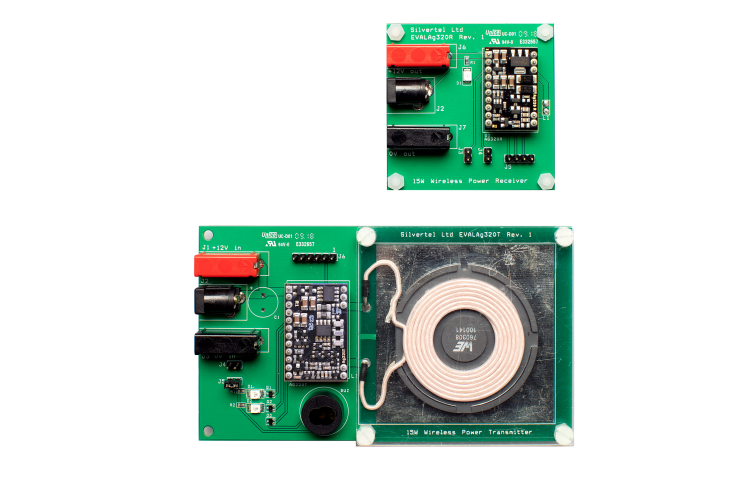

Ag321T Evaluation Board

This is a Qi 15W wireless transmitter evaluation kit for the Ag321T transmitter module, supplied complete with a transmitter coil fitted and with the EVALAg320R for a complete end-to-end wireless power Eval system.  Evaluation boards only available as a kit to include both EvalAg321T and EvalAg320R.
